Fully Automatic Candle Type Filter Housing Controlled By PLC

Product Categories
YuZhou YuWei Filter Equipment Co., Ltd.
Contact Now

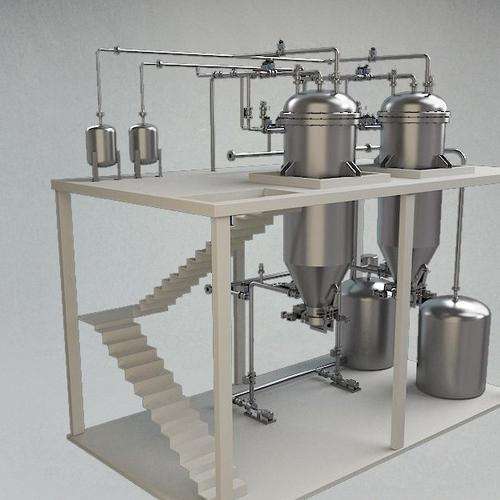

Fully Automatic Candle Type Filter Housing Controlled By PLC

  • 1
  • 2

Brand Name : Yuwei

Model Number : YWZS

Certification : IOS/CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 units per month

Delivery Time : 20-25 work days

Packaging Details : bubble wrap/wooden case

Name : Candle Filter

Material : SS 304/316

Discharge : Back Flow

Control : PLC

Filter area : 0.5-60 m2

Precision : 3-200 Micron

Inlet/Outlet : DN25-DN200

Housing surface : Sand Blast/Polish

Pressure : 0.4 -0.8 Mpa

Work Temperture : 0-160degree

Contact Now

Yuwei Fully Automatic Candle Filter Housing Controlled By PLC Auto Discharging​

Our range of welded wedge wire candle filters are ideal for removing particles of very small size upto 10 microns. These filters can be easily washed through a back flush of the steam. We also provide options for different attachments to meet the specific process requirements of the clients.
Features
Backwashable welded wedge wire FOTI tubes
Low heel volume
Easy to clean smooth filtration surface
Outside to inside flow
No moving parts
Permanent Filter element
Fine Filtration down to particles (10 Microns and above)
Advantages
Clean and hygienic operation
Highest level safety for operator and process
Eco-friendly operation
Stand alone equipment
Backwashing facility
Permanent candles
Steam back-washable

Model Cartridge QTY Cartridge Size(mm) Filtering Area(㎡) Capacity(t/h) Housing Volume(L) Inlet(DN)

Cake Discharging Outlet

(DN)

 Housing Diameter(mm) Total Height(mm) Height of Housing(mm) Height of Waste Discharging Oulet(mm) Dimension(mm)
YWZS-1 7 90*500 1 2.2 140 25 150 456*3 1902 1448 500 φ1000
YWZS-1.5 10 90*500 1.5 3.3 180 25 200 508*4 1928 1474 500 φ1000
YWZS-2 7 90*1000 2 4.4 220 32 150 456*3 2402 1948 500 φ1200
YWZS-3 10 90*1000 3 6.6 280 40 200 508*4 2428 1974 500 φ1200
YWZS-4 14 90*1000 4 8.8 400 40 200 608*4 2502 1868 500 φ1300
YWZS-6 19 90*1000 6 13.2 560 50 250 708*5 2578 1944 500 φ1400
YWZS-8 24 90*1000 8 18 740 65 250 808*5 2644 2010 500 φ1500
YWZS-12 40 90*1000 12 26 1200 65 300 1010*5 2854 2120 600 1300*1440
YWZS-18 64 90*1000 18 40 1800 80 400 1212*6 2904 2170 600 1440*1540
YWZS-30 106 90*1000 30 66 3000 100 500 1616*8 3440 2840 600 1800*1940
YWZS-40 140 90*1000 40 88 3815 150 500 1820*10 3560 2960 600 2000*2140
YWZS-60 190 90*1000 60 132 5700 150 500 2220*10 3700 3100 600 2440*2540

• Fully closed filtration. No leakage. No any environmental pollution.
• The entire process can be fully automated.
• The filter cake can be washed and dried to obtain maximum economic benefit.
• The filter element is designed to be the duplex structure.
• It has a wide applications and better filtering effects.
• It is the gas blowback slagging. The slag can be discharged quickly and cleanly.
• It is suitable for a variety of sticky materials.

Certificates:

Fully Automatic Candle Type Filter Housing Controlled By PLC

Fully Automatic Candle Type Filter Housing Controlled By PLC

Fully Automatic Candle Type Filter Housing Controlled By PLC
